It has generous ground clearance of 780mm. The extra crawler width ensures excellent stability and improved lifting capacity.

The highly efficient hydraulic system minimises fuel consumption while maximising power.

Specifications

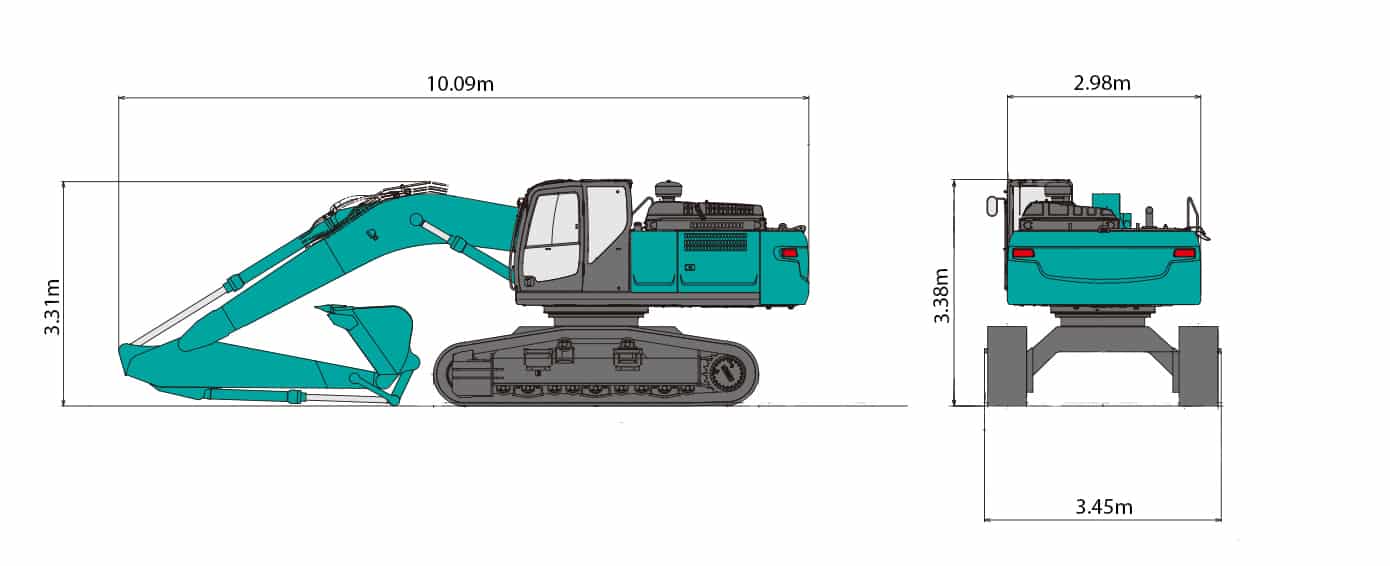

Transport Dimensions

Length, Width & Height

10.09 x 3.45 x 3.38 m

Operating Weight

29,000 kg

Refilling Capacities

Fuel Tank

403 L

Hydraulic Oil Tank

165 (273) L

Working Range

Max. Digging Depth

6.66 m

Max. Digging Reach

10.3 m

Engine

Rated Power Output

137 kW

Rated Torque

654 Nm

Breakout Force

Bucket Digging Force

187 kN

Arm Crowding Force

134 kN

Hydraulic System

Max. Pump Flow

2 x 245 + 21 L/min

Standard Auxiliary

N&B + Tilt Piping
