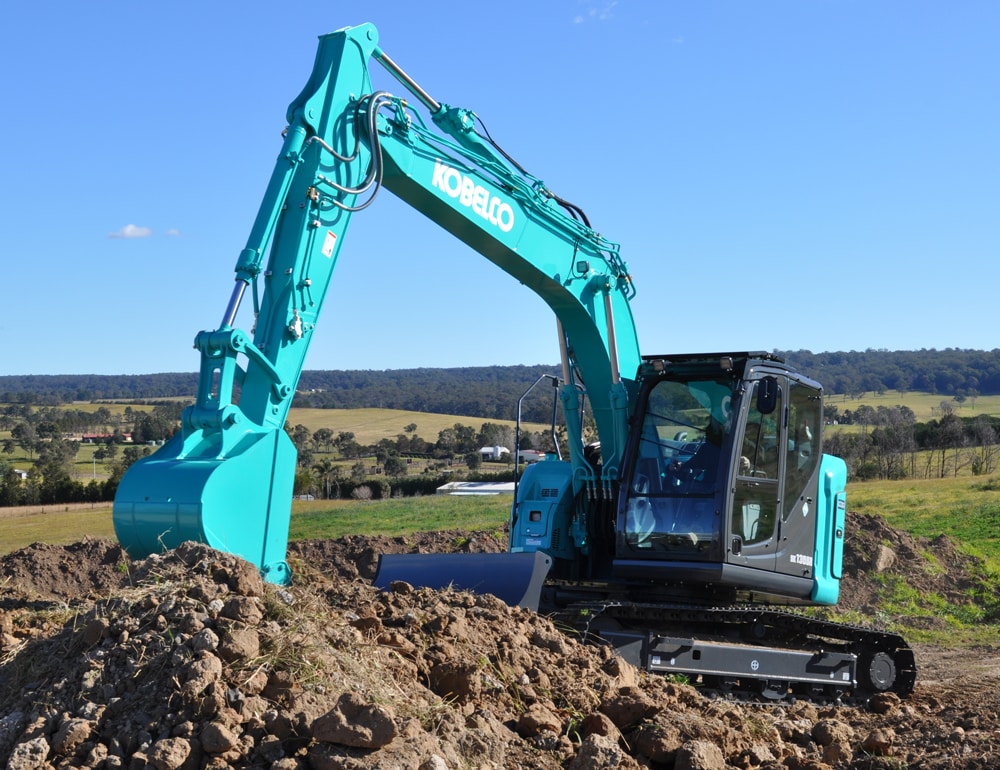

The SK135SR-7 offers superior performance, greater efficiency and productivity with increased power and speed. This new model features a 10″ colour monitor with jog-dial operation and an eagle-eye camera for 270-degree vision.

This new model features a 10″ colour monitor with jog-dial operation and an eagle-eye camera for 270-degree vision.

Specifications

Transport Dimensions

Length, Width & Height

8.07 x 2.49 x 2.86 m** (**500 mm shoe)

Operating Weight

15,100 kg with dozer

Refilling Capacities

Fuel Tank

186 L

Hydraulic Oil Tank

89.9 (176) L

Working Range

Max. Digging Depth

5.52 m

Max. Digging Reach

8.37 m

Engine

Rated Power Output

86.0 kW

Rated Torque

375 Nm

Breakout Force

Bucket Digging Force

105.4 kN

Arm Crowding Force

64.0 kN

Hydraulic System

Max. Pump Flow

2 x 142 L/min + 22, 66 L/min

Standard Auxiliary

N&B + Tilt Piping

Includes Kobelco Geoscan Excavator Remote Monitoring System and Kobelco’s iNDr Cooling System for optimum low noise and dust reduction.
