SK350LC-10 Large Excavators | Tier 4 Final Engine | Kobelco
Kobelco Construction Machinery Australia PTY LTD.
Tier 4 Final Excavators

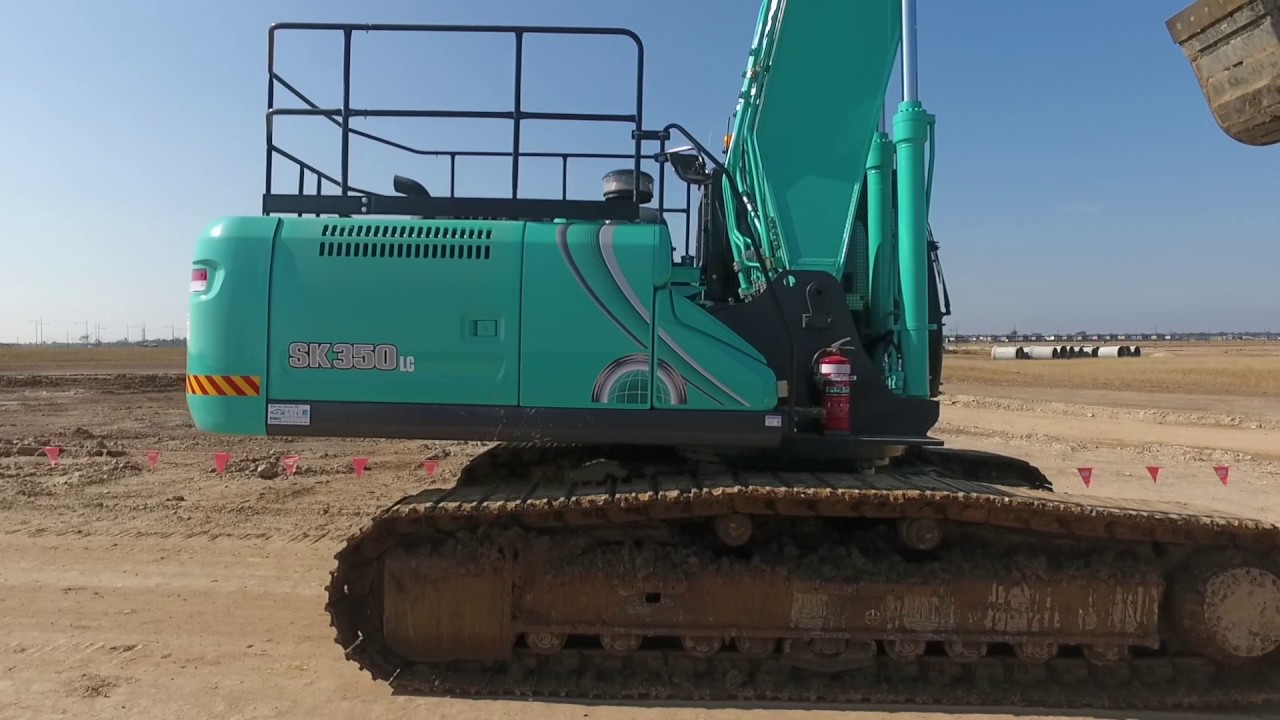

SK350LC-10

Key Feature

Stage 4 compliant engine.
Revolutionary technology saves fuel.
Top-class excavating reach extends working range.
Includes Kobelco Geoscan Excavator Remote Monitoring System.
Built to operate in tough working environments.
Standard quick hitch piping which speeds up attachment changes.

Now available with Trimble-ready Earthworks System in Australia and New Zealand.
Semi-autonomous options. Integrated 2D/3D systems available.





Videos

Kobelco
Kobelco
Kobelco
Kobelco
Kobelco
Kobelco
Kobelco
Kobelco
Kobelco

Specifications

Dimensions
Overall Length, Width & Height
11.3 x 3.19 x 3.2 m
OPERATING WEIGHT
Operating Weight
36,700 kg
Engine
Rated Power Output
213 kW / 2,100 min
Hydraulic System
Max. Discharge Flow
2 x 294 (2 variable displacement pumps) + 21 (1 gear pump) L/min
WORKING RANGES
Max. Digging Depth
7.56 m
Max. Digging Reach
11.26 m
Max. Dumping Clearance
7.37 m
DIGGING FORCE
Bucket Digging Force
244 kN with power boost engaged (ISO 6015)
Arm Crowding Force
180 kN with power boost engaged (ISO 6015)
REFILLING CAPACITIES
Fuel Tank
503 L
Hydraulic Oil Tank (System)
245 (410) L
FACTORY TILT LINES
Factory Tilt Lines
Yes
