Tier 4 Final Excavators

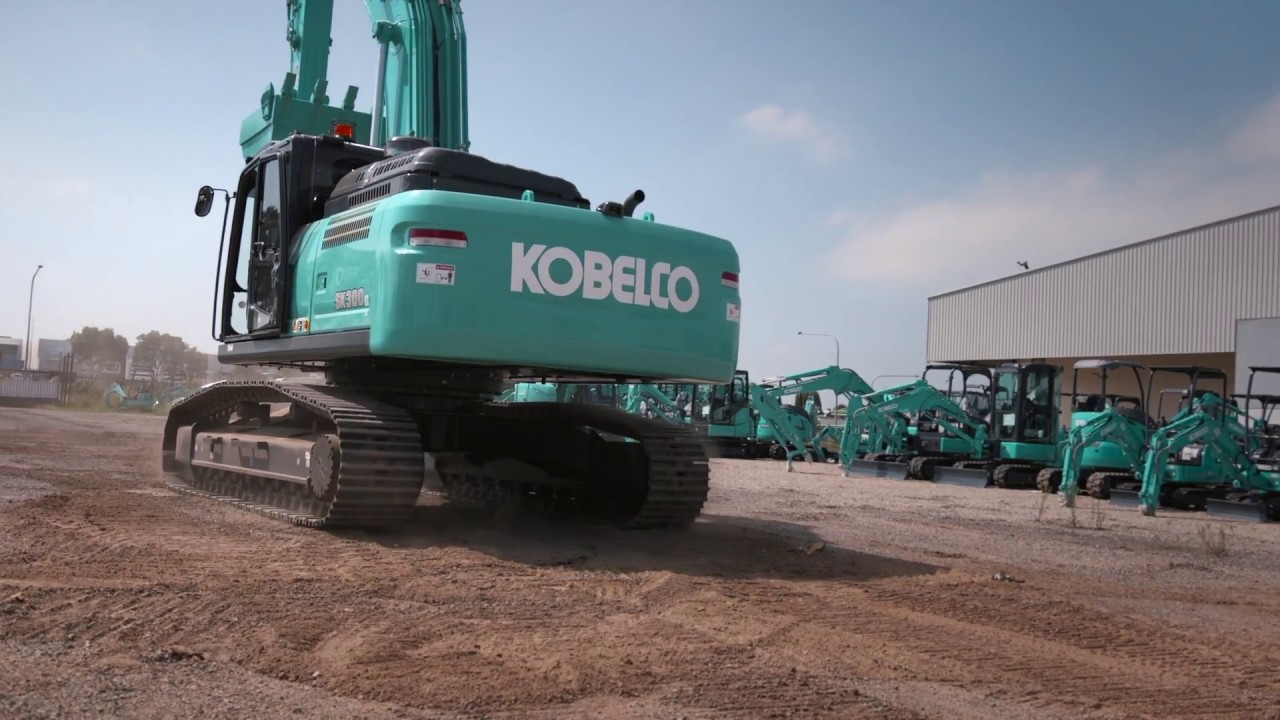

SK300LC-10

Key Feature

Stage 4 compliant engine.
Revolutionary technology saves fuel.
Top-class excavating reach extends working range.
Includes Kobelco Geoscan Excavator Remote Monitoring System.
Built to operate in tough working environments.
Standard quick hitch piping which speeds up attachment changes.
2YR/3,000HR Full Factory Warranty and 4YR/6,000HR EPT Warranty.

Now available with Trimble-ready Earthworks System in Australia and New Zealand.
Semi-autonomous options.
Integrated 2D/3D systems available.
Trimble Earthworks system developed on Kobelco.
Click here to find out more

Videos

Kobelco
Kobelco
Kobelco
Kobelco
Kobelco
Kobelco

Specifications

Dimensions
Overall Length, Width & Height
10.71 x 3.19 x 3.2 m
OPERATING WEIGHT
Operating Weight
31,000 kg
Engine
Rated Power Output
200 kW / 2,100 min (ISO 14396)
Hydraulic System
Max. Discharge Flow
2 x 245 (2 variable displacement pumps) + 21 (1 gear pump) L/min
WORKING RANGES
Max. Digging Depth
7.2 m
Max. Digging Reach
10.87 m
Max. Dumping Clearance
7.11 m
DIGGING FORCE
Bucket Digging Force
208 kN with power boost engaged (ISO 6015)
Arm Crowding Force
139 kN with power boost engaged (ISO 6015)
REFILLING CAPACITIES
Fuel Tank
503 L
Hydraulic Oil Tank (System)
245 (410) L
FACTORY TILT LINES
Factory Tilt Lines
Yes
